ATD Tools

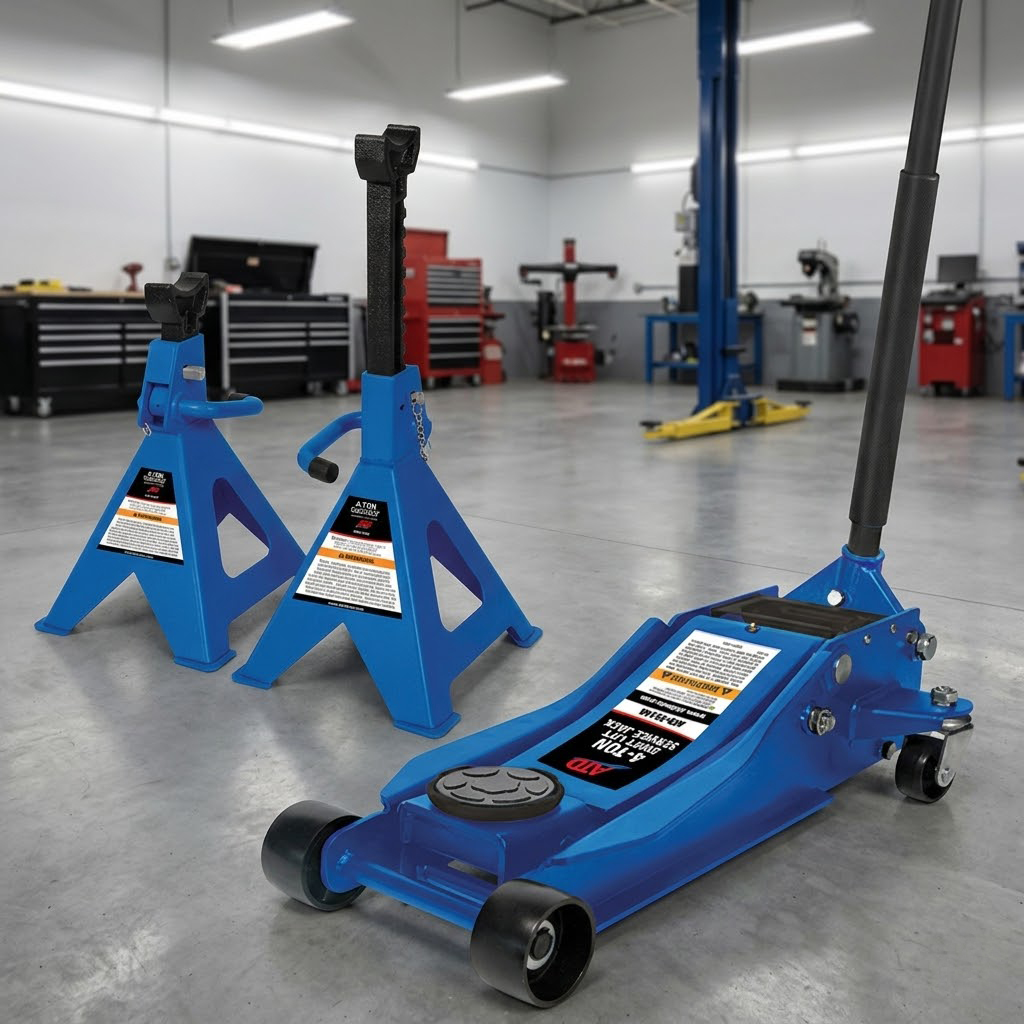

4-Ton Swift Lift Service Jack (ATD-7514A)

Service Jack Features:

• High maximum lift is ideal for SUVs, trucks, trailers and other high clearance vehicles
• Exclusive Swift Lift™ Technology offers a quicker lift for professional performance
• Pump pistons are shielded to prevent contaminants from damaging the hydraulic system
• Internal by-pass valve protects the hydraulic system from over-pumping
• U-Joint release mechanism provides precise control of load descent in any handle position
• Heavy gauge construction features flanged side plates for added strength
• Protective foam cover on handle prevents vehicle damage
• Equipped with (2) extra-wide steel casters and (2) swivel casters with bearings for stability and easy mobility
• Rubber saddle pad protects the vehicle from damage during lifting
• Meets or exceeds current ASME PASE-2024 standards

Service Jack Specifications:

• Capacity: 4 Tons
• Min. Height: 4-3/8"
• Max Height: 20-1/4"
• Saddle Diameter: 4-5/16"
• Handle Length: 50"
• Jack Size: 27-11/16" x 14-3/8" x 6-15/16"

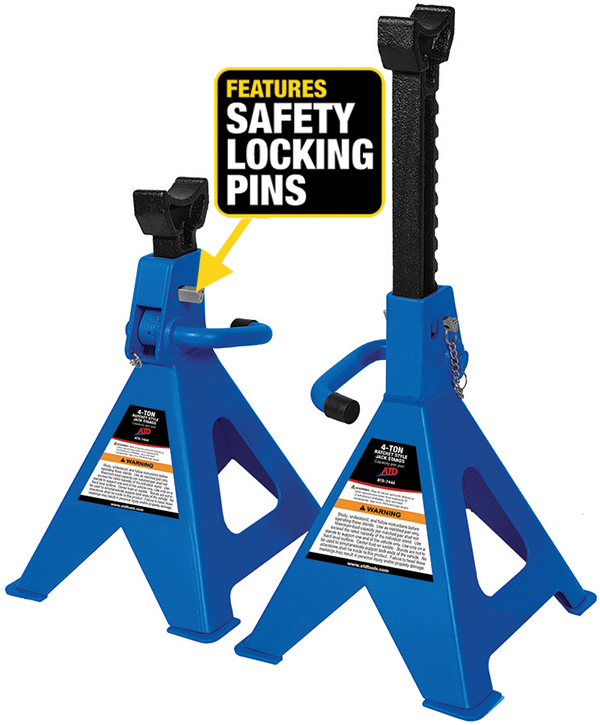

4-Ton Ratchet Style Jack Stands (ATD-7444)

Jack Stand Features:

• Double lock design with safety pin provides additional security when working beneath a vehicle
• Welded foot pads provide added stability and resist sinking into soft ground or asphalt
• Counter-weighted pawl locks ratchet bar securely in place
• Sturdy, welded steel construction
• One-piece, multi-position ductile iron ratchet bar
• Meets or exceeds current ASME PASE-2024 standards

Jack Stand Specifications:

• Capacity: 4 Tons
• Min. Height: 14-5/8"
• Max Height: 20-11/16"
• Base Size: 9.2" x 8.1"
• Weight Per Jack Stand: 21.2 lbs.

Available Downloads

1 Year Limited Warranty
